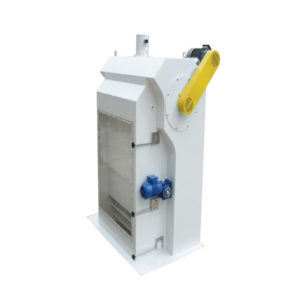

Air Circulating Aspirator

Designed to separete dust, light purites, broken kernels and etc. from a grain. The system has an advantage to reuse most of the its air without exhausting and without requirement of central or special filter and aspiration system which lowers energy consumption

Product Enquiry Form

If you have any questions and order request about this product, please contact us.





Product technical information

MODEL
TE 60

Capacity (t/h) for Precleaning

up to 8

Capacity (t/h) for Cleaning

up to 30

Air requirement (m³/min)

6

Electric motor (kW)

4

Gear motor (kW)

0,37

W (mm)

947

H (mm)

1995

L (mm)

920

Weight (kg)

500

MODEL
TE 100

Capacity (t/h) for Precleaning

8--14

Capacity (t/h) for Cleaning

30--40

Air requirement (m³/min)

8

Electric motor (kW)

4

Gear motor (kW)

0,37

W (mm)

947

H (mm)

1995

L (mm)

1320

Weight (kg)

650

MODEL
TE 150

Capacity (t/h) for Precleaning

15--24

Capacity (t/h) for Cleaning

41--90

Air requirement (m³/min)

10

Electric motor (kW)

4

Gear motor (kW)

0,55

W (mm)

947

H (mm)

1995

L (mm)

1820

Weight (kg)

860

Air Circulating Aspirator

Designed to separete dust, light purites, broken kernels and etc. from a grain. The system has an advantage to reuse most of the its air without exhausting and without requirement of central or special filter and aspiration system which lowers energy consumption

Product technical information

MODEL
TE 60

Capacity (t/h) for Precleaning

up to 8

Capacity (t/h) for Cleaning

up to 30

Air requirement (m³/min)

6

Electric motor (kW)

4

Gear motor (kW)

0,37

W (mm)

947

H (mm)

1995

L (mm)

920

Weight (kg)

500

MODEL
TE 100

Capacity (t/h) for Precleaning

8--14

Capacity (t/h) for Cleaning

30--40

Air requirement (m³/min)

8

Electric motor (kW)

4

Gear motor (kW)

0,37

W (mm)

947

H (mm)

1995

L (mm)

1320

Weight (kg)

650

MODEL
TE 150

Capacity (t/h) for Precleaning

15--24

Capacity (t/h) for Cleaning

41--90

Air requirement (m³/min)

10

Electric motor (kW)

4

Gear motor (kW)

0,55

W (mm)

947

H (mm)

1995

L (mm)

1820

Weight (kg)

860
